Right Hand Ellipse Dyad Roto Gear Casement Operator (White)
- [15.18.32.262]
Product Description

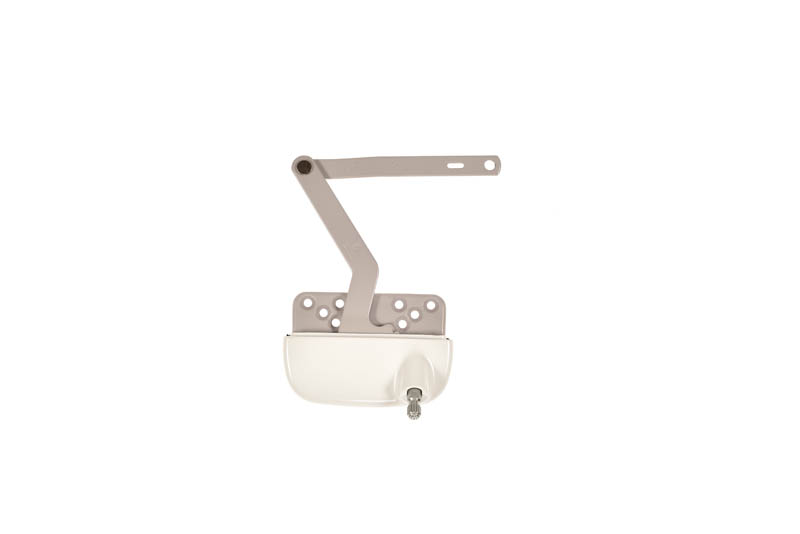

This Truth Window Operator is responsible for moving the sash. This right-hand casement window operator is compatible with the 14 series Truth Window Hardware hinges for sashes that range in width between 16 inches and 24 inches, with a maximum height of 52 inches and weight of 52 lbs. For simple installation, maintenance, and sash removal, the 15 series single-arm ellipses casement operator can be easily detached from the stud.
This housing is manufactured with hardened steel, die-cast zinc housings, and electrostatic coating to maximize durability and longevity by preventing chipping, corrosion, scratches, and physical damage. This crank window casement operator should enable up to 90 degrees of opening.
For additional assistance with installation or tips on choosing the right part, always refer to the product specifications documentation.
Appropriate accessories for [15.18.32.262]
| Model | Product Name | Price (in CAD) | |
|---|---|---|---|
| 30473.93 | Casement Tracks (4 Hole) 11 3/8" | $3.00 | Add to Cart |
| 21504 | Gasket 15 Series Ellipse | $1.50 | Add to Cart |
| 10579.32 | Long Handle (White) | $7.00 | Add to Cart |
| 11329.32 | Folding Window Crank Handle (White) | $17.50 | Add to Cart |
| 11454.32 | Truth Contour Window Crank Handle (White) | $7.50 | Add to Cart |
| 11660.32 | Hand Knob (White) | $17.00 | Add to Cart |
